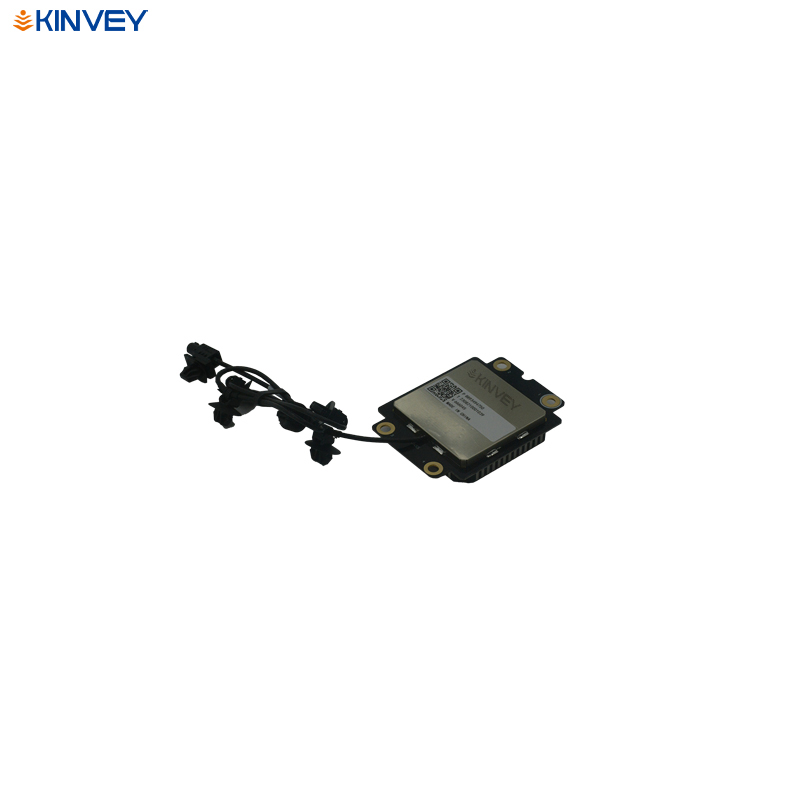

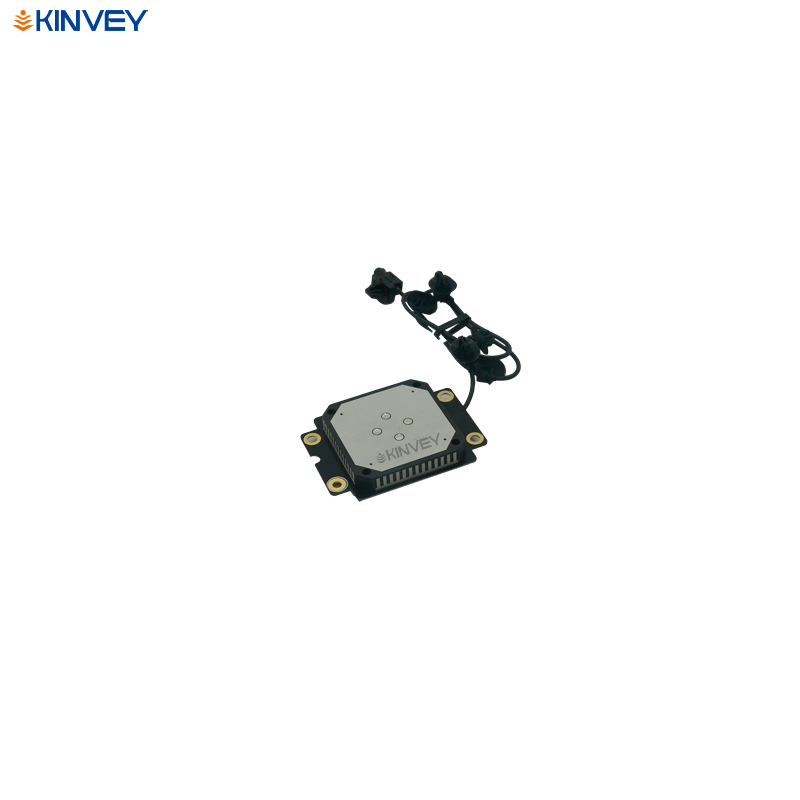

Multi-system full-band vehicle antenna KV-FM150

·Support GPS、BDS、GLONASS、GALILEO four-system multi-frequency
·Small product size, light weight, compact structure
·Passive antenna with wide working band can support multi-system & multi-frequency well, greatly improving the stability of the system
·Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-FM150 is a high precision antenna that supports GPS/BDS/GLONASS full-band system, it can meet the high precision positioning needs of vehicles

Technical Features

● Small product size, light weight, compact structure.

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency well, greatly improving the stability of the system.

● Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2/LBand/L5
BDS B1I/B2I/B2A
GLONASS G1/G2
GALILEO E1/E5a/E5b
L-Band

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB(Center frequency)

Azimuth Coverage

0°~360°
